OpenTelemetry Integration

OpenTelemetry is the integration path for every Traceway backend. Go, Node.js, Python, PHP, Java, .NET, Ruby: whatever your server runs on, it exports traces, metrics, and logs over OTLP/HTTP to Traceway. There is no separate vendor SDK to learn per framework, and no separate Traceway project per backend service.

OpenTelemetry (opens in a new tab) (OTel) is the industry-standard, vendor-neutral framework for collecting telemetry. If your app already uses OTel, you can point it at Traceway with a few lines of config. If you're starting fresh, any OTel SDK will work.

Create the Traceway project with framework OpenTelemetry, then send your API, background workers, scheduled jobs, AI calls, and host metrics to that one project. See Project Structure.

How It Works

1. Instrument your app with an OpenTelemetry SDK (or auto-instrumentation).
2. Export via OTLP/HTTP: configure the SDK (or an OTel Collector) to send data to your Traceway instance.
3. Traceway maps the data: spans become endpoints and traces, metrics appear on your dashboards, and logs are indexed and linked to their originating traces.

Three signals, three exporters

OTel treats traces, metrics and logs as three independent signals. Each one needs its own exporter wired into the SDK. Configuring a trace exporter does not start sending logs, and auto-instrumentation packages do not add a log exporter for you. This is the most common reason the Logs page stays empty.

Logs need one extra step the other two do not. The OTel log exporter only ships records emitted through the OTel logs API, so you also need a bridge from whatever you actually log with: LoggingHandler for Python's logging, an slog handler for Go, a Monolog handler for PHP, the built-in appenders for the Java agent. A plain console.log or print sends nothing.

All three signals go to the same host and use the same project token. See Logs for the per-language wiring.

Supported Languages

Any language with an OTel SDK can export to Traceway. Here are the most common ones:

Every OTel ecosystem ships the API, the SDK and the OTLP exporter as separate packages. If you install only the SDK, you get an app that records spans and throws them away. The install commands above cover the exporter too.

Configuration

Traceway serves OTLP over HTTP only. There is no gRPC endpoint, so set your exporter's protocol to http/protobuf (or http/json) explicitly. Several SDKs default to gRPC when the variable is unset: with OTEL_TRACES_EXPORTER=otlp and no OTEL_EXPORTER_OTLP_PROTOCOL, the Python SDK resolves to gRPC, and the Java agent does the same. The failure is silent. The app runs, exits 0, prints no warning, and every export lands nowhere.

OTEL_EXPORTER_OTLP_PROTOCOL=http/protobuf

Set that wherever you configure the exporter. The one exception is PHP, which needs http/json instead.

An export larger than 10 MB after decompression is rejected outright with 413 Request Entity Too Large and {"error":"request body exceeds the 10MB limit"}. Nothing is truncated and nothing is partially ingested. OTLP exporters treat 4xx as permanent and drop the batch instead of retrying, so that data is lost. Keep batches comfortably under the limit by capping the exporter's batch size: maxExportBatchSize in the JS SDK, max_export_batch_size in Python, send_batch_max_size on the Collector's batch processor. The SDK default of 512 spans per export is far below the limit.

If ingest is saturated, Traceway answers 503 with a Retry-After header instead. That one is retryable, and every OTLP exporter and the Collector will back off and resend.

Quick Start: Direct SDK Export

The simplest setup: your app exports directly to Traceway, with no extra infrastructure.

Here is a complete Node.js setup that wires all three signals. Install the packages first:

npm install @opentelemetry/sdk-node @opentelemetry/auto-instrumentations-node \
  @opentelemetry/instrumentation @opentelemetry/api \
  @opentelemetry/exporter-trace-otlp-http @opentelemetry/exporter-metrics-otlp-http \
  @opentelemetry/exporter-logs-otlp-http @opentelemetry/sdk-metrics \
  @opentelemetry/sdk-logs @opentelemetry/resources @opentelemetry/api-logs

@opentelemetry/instrumentation is listed because the loader hook below is loaded by path from it, and @opentelemetry/api because your own code imports it. Both also arrive as transitive dependencies of the packages above, so npm's flat node_modules resolves them even when they are not declared. Declare them anyway, since your code names them directly.

Then create telemetry.mjs:

// telemetry.mjs
// Load it before your app: node --import ./telemetry.mjs server.js
import { register } from "node:module";
register("@opentelemetry/instrumentation/hook.mjs", import.meta.url);

import { NodeSDK } from "@opentelemetry/sdk-node";
import { OTLPTraceExporter } from "@opentelemetry/exporter-trace-otlp-http";
import { OTLPMetricExporter } from "@opentelemetry/exporter-metrics-otlp-http";
import { OTLPLogExporter } from "@opentelemetry/exporter-logs-otlp-http";
import { PeriodicExportingMetricReader } from "@opentelemetry/sdk-metrics";
import { BatchLogRecordProcessor } from "@opentelemetry/sdk-logs";
import { resourceFromAttributes } from "@opentelemetry/resources";
import { getNodeAutoInstrumentations } from "@opentelemetry/auto-instrumentations-node";

const BASE = "https://your-traceway-instance.com/api/otel";
const headers = { Authorization: "Bearer your-project-token" };

const sdk = new NodeSDK({
  resource: resourceFromAttributes({
    "service.name": "my-service",
    "service.version": "1.0.0",
  }),
  traceExporter: new OTLPTraceExporter({ url: `${BASE}/v1/traces`, headers }),
  metricReaders: [
    new PeriodicExportingMetricReader({
      exporter: new OTLPMetricExporter({ url: `${BASE}/v1/metrics`, headers }),
      exportIntervalMillis: 30000,
    }),
  ],
  logRecordProcessors: [
    new BatchLogRecordProcessor({
      exporter: new OTLPLogExporter({ url: `${BASE}/v1/logs`, headers }),
    }),
  ],
  instrumentations: [getNodeAutoInstrumentations()],
});

sdk.start();

Start your app with node --import ./telemetry.mjs server.js. Loading the file first is what lets auto-instrumentation patch your HTTP server and database clients before they are imported.

Four details that break this silently if you get them wrong:

• The two node:module lines at the top are required for an ESM app (.mjs, or "type": "module"). Without the hook, no framework is patched, http.route is never set, and your endpoints are named after raw span names. A CommonJS app (require, .cjs) does not need them.
• resourceFromAttributes replaced the old new Resource(...), which was removed in @opentelemetry/resources 2.x. The old form throws at import time.
• BatchLogRecordProcessor takes an options object, not a bare exporter. new BatchLogRecordProcessor(exporter) constructs fine and then exports nothing, with no error.
• metricReaders is the current option. The singular metricReader still works but is deprecated.

The same pattern applies to any language: set the OTLP/HTTP endpoint and the Authorization header in your exporter config, once per signal.

End to End: One Request, Its Spans, and Its Logs

Traces and logs are separate signals with separate exporters, but they meet again in the dashboard. A log emitted inside an active span carries that span's trace_id, and the Endpoint detail page uses that id to show the request's log lines next to its waterfall.

Here is the request side, using the telemetry.mjs above. Auto-instrumentation produces spans like these for you; they are written out by hand so the correlation is visible.

import { trace, SpanKind } from "@opentelemetry/api";
import { logs, SeverityNumber } from "@opentelemetry/api-logs";

const tracer = trace.getTracer("shop");
const logger = logs.getLogger("shop");

await tracer.startActiveSpan(
  "GET /orders/:id",
  {
    kind: SpanKind.SERVER,
    attributes: { "http.request.method": "GET", "http.route": "/orders/:id" },
  },
  async (serverSpan) => {
    logger.emit({
      severityNumber: SeverityNumber.INFO,
      severityText: "INFO",
      body: "handling order lookup",
      attributes: { "order.id": "ord_123" },
    });

    await tracer.startActiveSpan(
      "SELECT orders",
      {
        kind: SpanKind.CLIENT,
        attributes: {
          "db.system": "postgresql",
          "db.query.text": "SELECT * FROM orders WHERE id = $1",
        },
      },
      async (dbSpan) => {
        // ... run the query ...
        dbSpan.end();
      },
    );

    serverSpan.setAttribute("http.response.status_code", 200);
    serverSpan.end();
  },
);

What lands in Traceway:

The glue is that the log record carries the root span's trace_id, and a root span's Endpoint row is keyed by that same trace id.

Note the SpanKind.SERVER on the outer span. With the default INTERNAL kind and no HTTP attributes, the span is dropped and none of this appears. See Traces for the full classification rules.

Quick Start: Spring Boot (Java Agent)

The OpenTelemetry Java agent (opens in a new tab) instruments Spring Boot applications with zero code changes. Download opentelemetry-javaagent.jar (opens in a new tab) from the latest release, use the 2.x agent, and pass it to the JVM:

java \
  -javaagent:opentelemetry-javaagent.jar \
  -Dotel.service.name=my-spring-app \
  -Dotel.exporter.otlp.protocol=http/protobuf \
  -Dotel.exporter.otlp.endpoint=https://<your-instance>/api/otel \
  -Dotel.exporter.otlp.headers="Authorization=Bearer <project_token>" \
  -jar target/my-app.jar

-Dotel.exporter.otlp.endpoint takes the base URL. The agent appends /v1/traces, /v1/metrics and /v1/logs itself, which is exactly how Traceway's ingest paths are laid out. (The per-signal settings such as otel.exporter.otlp.traces.endpoint are used as-is, so those need the full path.) -Dotel.service.name becomes the Server Name on every endpoint, task and issue.

Set -Dotel.exporter.otlp.protocol=http/protobuf explicitly even though it is the default on the 2.x agent. Traceway speaks OTLP/HTTP only. A 1.x agent JAR, or any environment that already exports OTEL_EXPORTER_OTLP_PROTOCOL=grpc, will send telemetry to a port that does not exist, and nothing in the dashboard will tell you.

All three signals are exported by this command. otel.traces.exporter, otel.metrics.exporter and otel.logs.exporter all default to otlp, so JVM and HTTP server metrics land on your dashboards and your Logback or Log4j output lands in Logs, with no extra flags and no appender to register. If you deliberately want traces only, add -Dotel.metrics.exporter=none -Dotel.logs.exporter=none.

Leave otel.exporter.otlp.metrics.default.histogram.aggregation at its default EXPLICIT_BUCKET_HISTOGRAM. Traceway reads explicit-bucket histograms and exposes each one as <name>.avg and <name>.count. Base-2 exponential histograms are not read and are dropped without an error, so http.server.request.duration and the JVM latency histograms would silently disappear from your dashboards.

In a container or a Kubernetes manifest, use the environment-variable form instead. Same settings, uppercased, with . and - replaced by _:

JAVA_TOOL_OPTIONS=-javaagent:/app/opentelemetry-javaagent.jar
OTEL_SERVICE_NAME=my-spring-app
OTEL_EXPORTER_OTLP_PROTOCOL=http/protobuf
OTEL_EXPORTER_OTLP_ENDPOINT=https://<your-instance>/api/otel
OTEL_EXPORTER_OTLP_HEADERS=Authorization=Bearer <project_token>

Do not quote the OTEL_EXPORTER_OTLP_HEADERS value in a Kubernetes manifest. The quotes become part of the header value and the request comes back 401.

What lands where, with the command above:

Exceptions that reach the servlet container are recorded as span events and show up in Issues. Traceway groups them by the exception class plus the normalized frame list. The message is stripped and Java, Kotlin and Scala line numbers are removed, so one failure keeps a single issue across redeploys and across differing error messages. A different call site, or a frame added or removed in the same path, is a different issue by design.

Two caveats worth knowing. The message is stripped only from the first line of the header, and only when the exception class name contains no $. Exceptions from nested classes, and exceptions whose message spans several lines, can therefore split into one issue per distinct message.

Quick Start: OTel Collector

If you already run an OpenTelemetry Collector (opens in a new tab) or want a central pipeline that fans out to multiple backends, you can route data through it. This is optional. The direct SDK export above works without a Collector.

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint: 0.0.0.0:4318

processors:
  batch:

exporters:
  otlphttp:
    endpoint: "https://your-traceway-instance.com/api/otel"
    headers:
      Authorization: "Bearer your-project-token"

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]
    metrics:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]
    logs:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp]

Every pipeline must declare at least one receiver. A pipeline with only an exporters: line fails validation with must have at least one receiver and the Collector never starts.

The otlphttp exporter appends /v1/traces, /v1/metrics and /v1/logs to the base endpoint, so point it at /api/otel and nothing else. On recent Collector builds the component has been renamed to otlp_http, with otlphttp kept as a deprecated alias. Both work today. Use otlp_http if your build warns about the alias.

Your apps then send to the Collector on localhost:4318 (OTLP/HTTP) or localhost:4317 (OTLP/gRPC), and the Collector is the only thing that needs your Traceway token.

Nothing Is Showing Up

Traceway accepts telemetry it cannot use rather than rejecting the whole batch, so a misconfiguration usually looks like silence rather than an error. Work down this list.

Check the wire first. Post an empty span batch and watch the status code:

curl -i -X POST https://<your-instance>/api/otel/v1/traces \
  -H 'Content-Type: application/json' \
  -H 'Authorization: Bearer <project_token>' \
  -d '{"resourceSpans":[]}'

• 200 with the body {} means the endpoint and token are good. The problem is in your SDK, or in how your spans are shaped.
• 401 with an empty body means a bad token, or a header that does not start with Bearer .
• 503 with Retry-After means ingest is saturated. Exporters retry this automatically.
• 413 means the batch exceeded 10 MB after decompression. Nothing was ingested. Lower the exporter's batch size.
• 404 means the path under /api is wrong, for example /api/v1/traces instead of /api/otel/v1/traces.
• 200 with an HTML body means the /api prefix is missing. The dashboard is served from the same origin, so its single-page fallback answers /otel/v1/traces with the dashboard itself and it looks like a success. Check that the response Content-Type is application/json, not text/html. The base is /api/otel, not /otel.

Then check the shape.

Turn on the SDK's own diagnostics. Most silent client-side failures, including a mis-constructed exporter or processor, only surface here:

import { diag, DiagConsoleLogger, DiagLogLevel } from "@opentelemetry/api";
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);

The equivalents are OTEL_LOG_LEVEL=debug for Python and the Java agent, and otel.SetErrorHandler for Go.

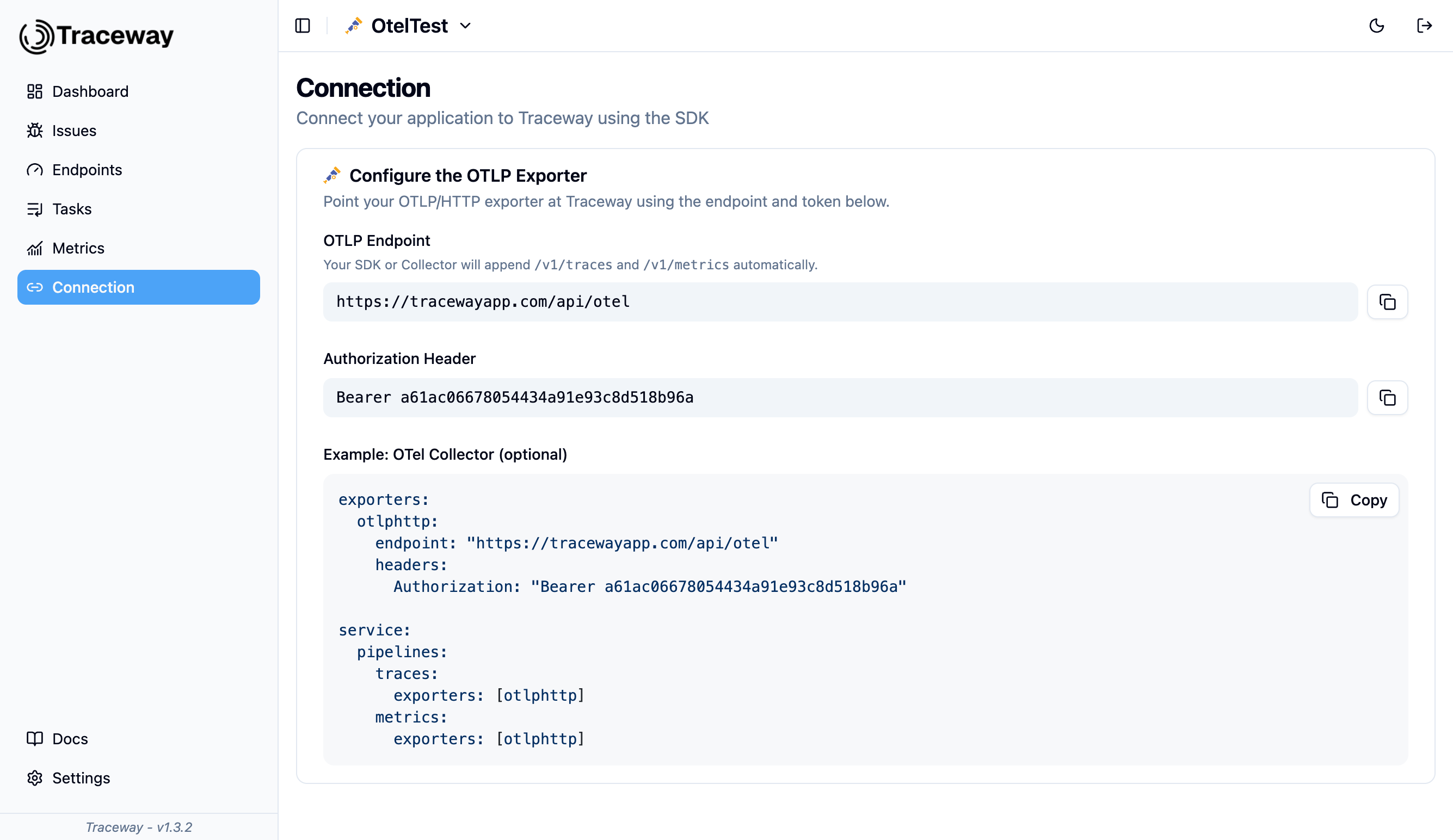

Connection Page

Your Traceway dashboard includes a Connection page with a ready-made config snippet and your project token. Go to Connection in the sidebar to grab it.

Next Steps

• Traces: how OTel spans map to Traceway concepts
• Metrics: supported metric types and histogram handling
• Logs: export OTel logs and link them to your traces

Framework guides, all on this same OTLP path:

• Node.js · NestJS · Next.js · Hono · Cloudflare Workers
• Python · Django
• Symfony · Laravel
